Product parameters:
Model: YTQM-2L
Specification ml: 100-500
Number of ball milling jars (per set with corresponding number of grinding balls): 4
Can be equipped with ball mill jar: 100ml/250ml/500ml
Equipment power supply: 220V-50HZ/110V-60HZ
Motor power KW/frequency converter power KW: 0.75
Speed regulation method: Variable frequency speed regulation
Total running time (min): 0-3000
Alternating running time: 0-3000
Rotation speed (RPM): 50-580
Noise<db: 60db
Equipment weight (kg): 120
Equipment volume (mm): 800 * 470 * 650
Transmission method: gear transmission
Working mode: Two or four ball milling tanks working simultaneously
Maximum sample size: two-thirds of the capacity of the ball mill jar
Feed particle size: soil material ≤ 10mm, other materials<3mm
Discharge particle size: minimum up to 0.1 μ m
Speed ratio (revolution: rotation): 1:2 (0.4L, 2L, 4L): 1:1.9 (12L): 1:1.5 (20L, 60L, 100L)
Rotation speed (self rotation): 0.4L: 0~600 rpm 2L: 0~580 rpm 4L: 0~530 rpm
12L: 0~440 revolutions per minute 20L: 0~280 revolutions per minute
60L: 0~250Hz drum speed 100L: 0~230rpm
Control mode: variable frequency stepless speed regulation, programmable control, manual and automatic timed forward and reverse rotation, timed shutdown control mode
Z-continuous working time (full load): 48 hours
Ball milling types: stainless steel, agate, ceramic, nylon, polyurethane, polytetrafluoroethylene, hard alloy, stainless steel vacuum, stainless steel sleeve
Ball mill size: 50 ml、100ml、250ml、500ml、1000ml、2000ml、3000ml、4000ml、5000ml、10L、15L、20L、25L
Grinding ball material: stainless steel, agate ball, zirconia, ceramic ball, hard alloy
- Product Details
- Product manual

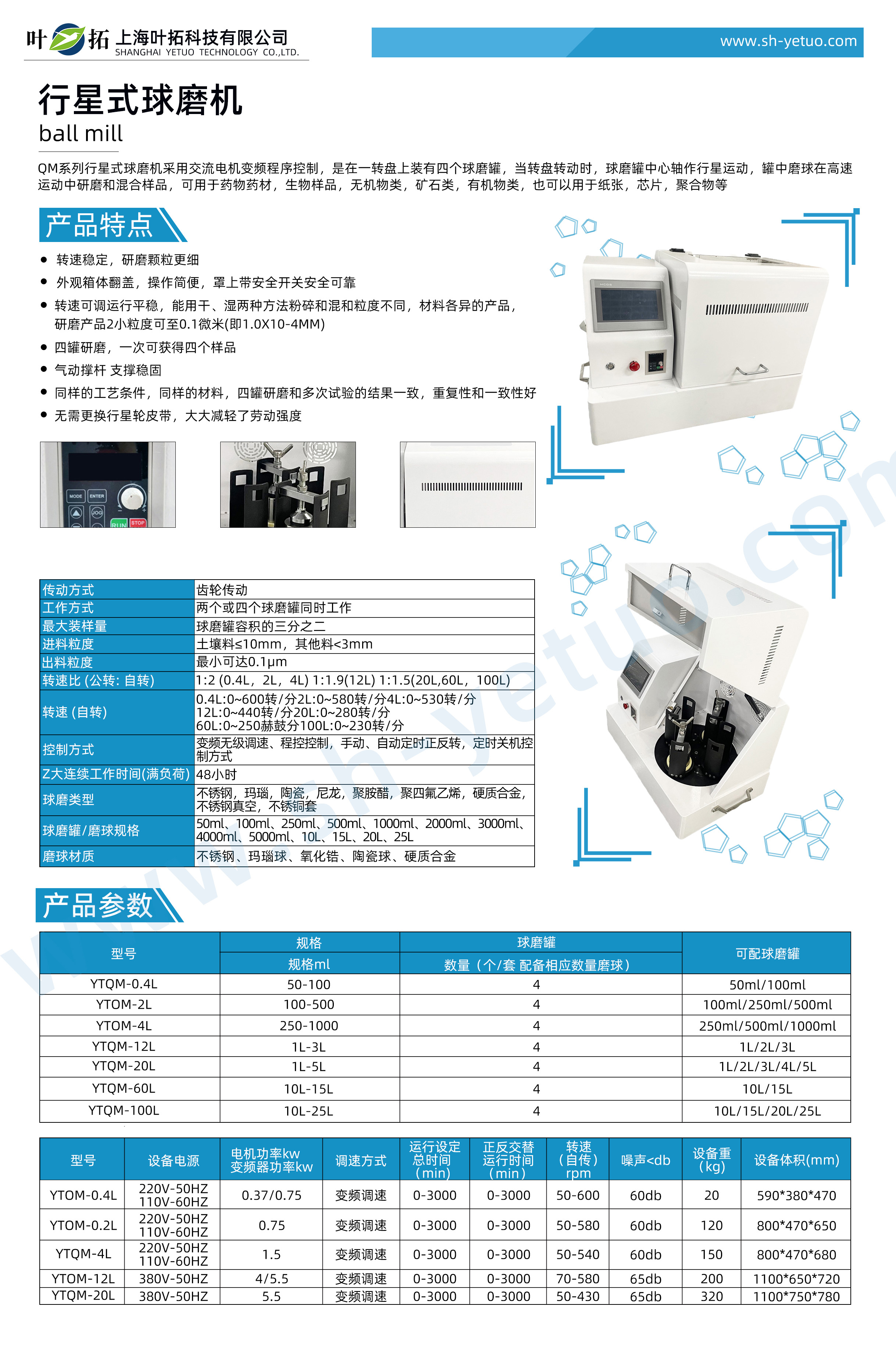

Yetuo YTQM-2L planetary ball mill
Model: YTQM-2L
Product Overview:
The QM series planetary ball mill adopts AC motor frequency conversion program control, which is equipped with four ball milling tanks on a turntable. When the turntable rotates, the central shaft of the ball milling tank undergoes planetary motion, and the grinding balls in the tank grind and mix samples at high speed. It can be used for pharmaceuticals, biological samples, inorganic substances, minerals, organic substances, as well as paper, chips, polymers, etc.
Product features of Yetuo YTQM-2L planetary ball mill
Stable rotational speed, finer grinding particles
The appearance of the box is flip cover, easy to operate, and the cover is equipped with a safety switch for safety and reliability
The speed can be adjusted to run smoothly, and products with different particle sizes and materials can be crushed and mixed using both dry and wet methods. The grinding product has a small particle size of up to 0.1 microns (i.e. 1.0X10-4MM)
Four cans of grinding, one can obtain four samples at a time
Pneumatic strut supports stability
Under the same process conditions and materials, the results of four cans of grinding and multiple tests are consistent, with good repeatability and consistency
No need to replace the planetary belt, greatly reducing labor intensity
